Summary:

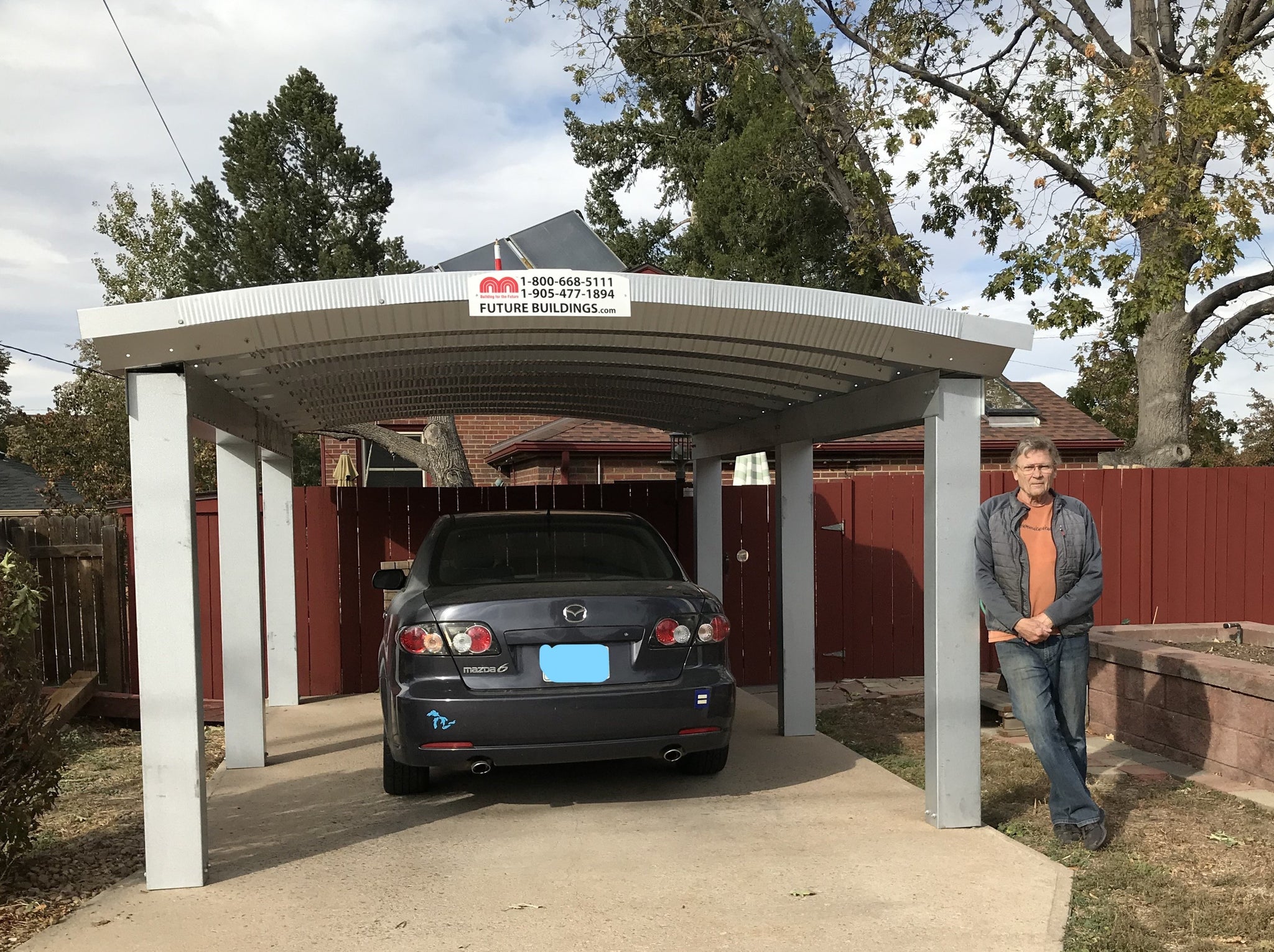

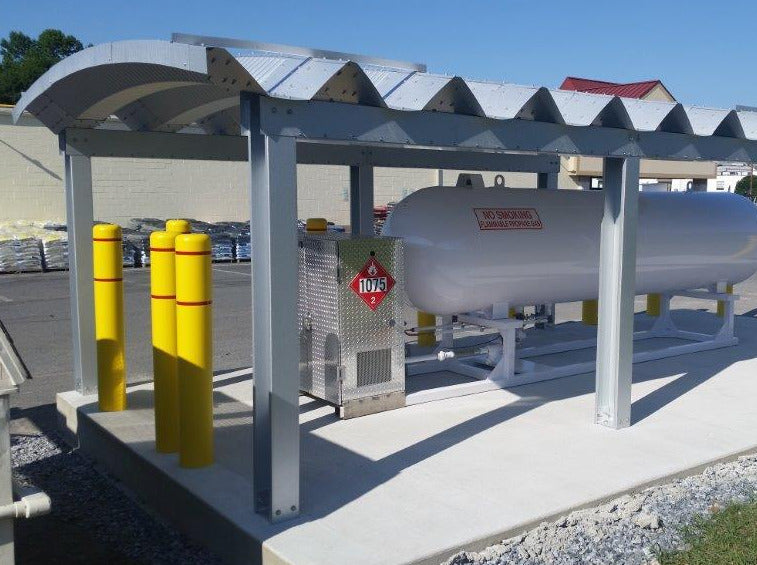

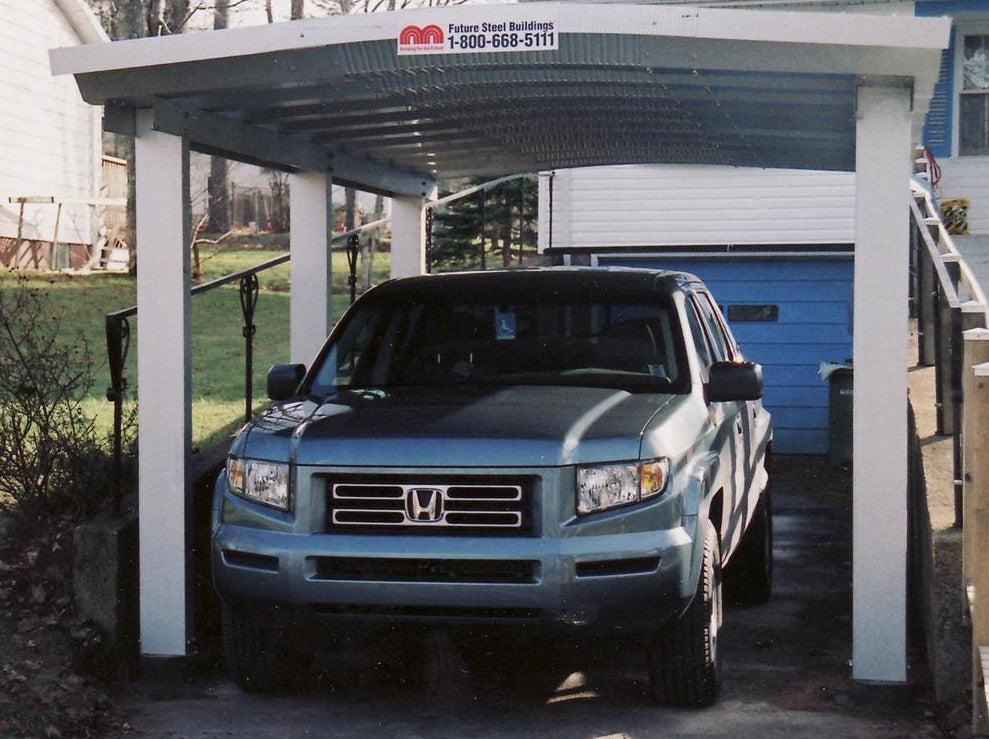

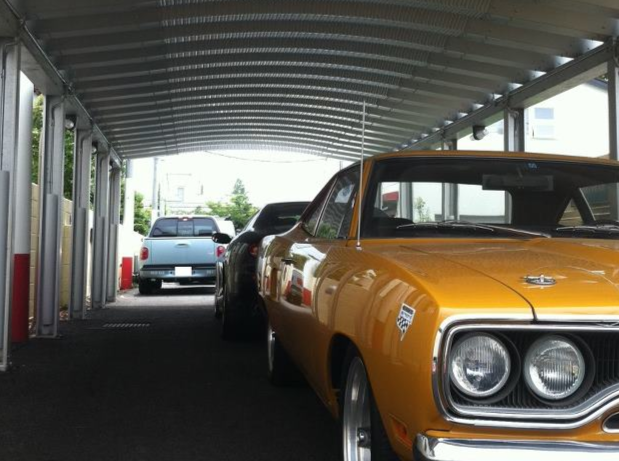

- Open sided structure
- Can be extended in 24" segments
- Simple nut & bolt DIY assembly
- Stamped Engineered drawings provided
Specifications:
| Exterior Width | 12' |
| Exterior Length | From 18' - 40' in 2' increments |
| Peak Height | 8' - 2 1/4" |
| Arch Panel Thickness | 0.03" |
| Snow Load | Up to 30psf [Importance Category 1] |
| Live Load | Up to 20lb [Importance Category 1] |
| Wind Load | 90mph [IBC 2018 Exposure c] |
|
|
*Call us 1.800.668.5111 if you require higher ratings |
| Arch Profile |
 |
| Fasteners | SAE Grade 2 or ASTM A 307 [more] |
| Material | Galvalume Sheet Steel Structural quality ASTM Spec A792-03 55% Aluminum-Zinc Alloy (Hot Dip Coating) ASTM A792 Grade 50A 50 KSI Minimum Yield 65 KSI Minimum Tensile 40 Year rust perforation warranty [more] |
| Country of manufacture | Canada |
Downloads:
 |
General Assembly Manual |
|
Preliminary Drawing |
|
AZ180 Galvalume FactSheet |
